تفاصيل المنتج:
شروط الدفع والشحن:
|
| Name: | Desktop Single-Screw Machine | Screw Diameter: | 15mm (20mm optional) |
|---|---|---|---|
| Output Capacity: | 0.01–0.5 kg/h | Machine Dimensions (L×W×H): | 0.5 × 0.2 × 0.4 m |
| Weight (Wooden Case Packed): | 24 kg | Extrusion Center Height: | 300mm |
| Motor Power: | 300w | L/D Ratio: | 16:1 |
| Heating Temperature Range: | Room Temperature to 300°C | Feeding Zone: | Equipped with silent cooling system |
| Screw & Barrel Material: | 38CrMoAl, Nitrided | ||
| إبراز: | 15mm desktop extruder machine,single-screw extruder 0.01-0.5 kg/h,laboratory screw extruder with warranty,single-screw extruder 0.01-0.5 kg/h,laboratory screw extruder with warranty |
||

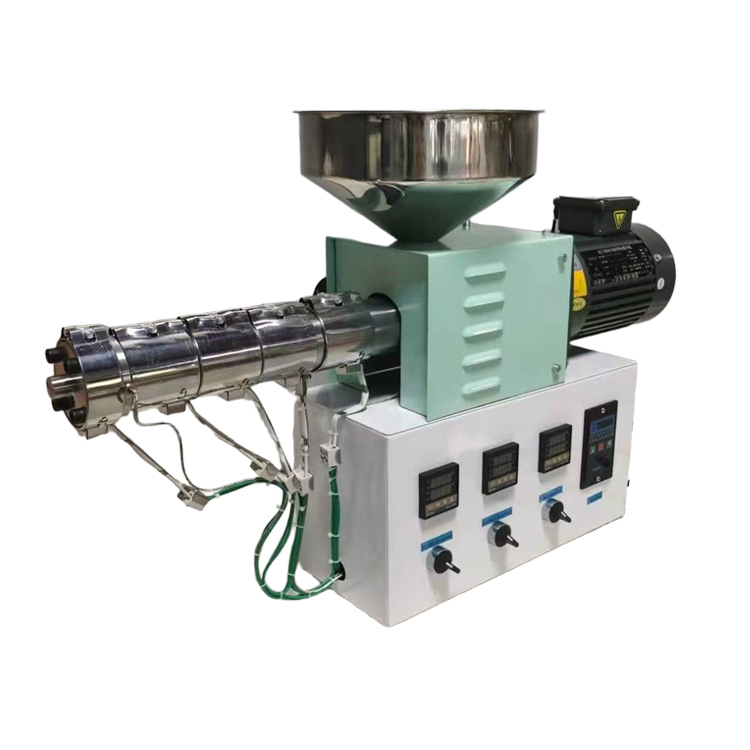

Desktop Single-Screw Machine
Application:
Product performance of laboratory small single-screw extruder:
Professionally manufactured screws and barrels with high processing precision and quality assurance
Brand motor drive, screw speed control is stable and reliable
The material with adjustable particle size is fully plasticized and mixed in the screw.
Application scope of laboratory small single screw extruder:
Melting, plasticizing and extruding of materials
Optimization of extrusion molding process parameters
Set up small experimental lines for films, sheets, pipes, granulation, etc.
Technical Parameters:
| Screw Diameter | 15mm (20mm optional) |
| Output Capacity | 0.01–0.5 kg/h |
| Machine Dimensions (L×W×H) | 0.5 × 0.2 × 0.4 m |
| Weight (Wooden Case Packed) | 24 kg |
| Extrusion Center Height | 300 mm |
| Extrusion Direction | Right to Left |
| Motor Power | 200 W |
| Voltage | 220V (or customizable) |
| L/D Ratio | 16:1 |
| Heating Temperature Range | Room Temperature to 300°C |
| Feeding Zone | Equipped with silent cooling system |
| Screw & Barrel Material | 38CrMoAl, Nitrided |
