تفاصيل المنتج:
شروط الدفع والشحن:
|
| حمولة كحد أقصى: | 5 كيلو نيوتن، 10 كيلو نيوتن، 20 كيلو نيوتن | نطاق القياس الفعال: | 0.2٪ ~ 100٪ (1 درجة) /0.4٪ ~ 100٪ (0.5 درجة) |
|---|---|---|---|
| قياس الدقة: | عرض القيمة ± 1٪ / عرض القيمة ± 0.5٪ | قرار اختبار: | أقصى حمولة 1/200000 |
| عرض الاختبار الفعال: | 390mm | شد شد فعال: | 800 مم ؛ 1000 مم ؛ 1200 مم |
| مدى سرعة الاختبار: | 0.001~200 مم/دقيقة؛ 500 مم/دقيقة (خيار 1000 مم/دقيقة) | دقة قياس الإزاحة: | التسامح: ±0.5%/التسامح: ±0.2% |
| نظام قياس التشوه: | الحد الأدنى: 10 مم، المدى الأقصى: 800 مم | دقة التشوه المقاس: | التسامح: ±0.5% |
| حماية الحمل الزائد: | الزائد 10٪ حماية تلقائية | حجم الآلة: | 80x55x220 سم |
| مزود الطاقة: | 220 فولت ، 50 هرتز | قوة: | 0.4kw |
| وزن الآلة: | 250 كجم | ||
| إبراز: | 10kN Universal Testing Machine,20kN Tensile Strength Testing Machine,50kN Computer Universal Tensile Strength Testing Machine,20kN Tensile Strength Testing Machine,50kN Computer Universal Tensile Strength Testing Machine |
||
This test machine is designed for testing flexible materials with large deformation, such as rubber, plastics, and leather. It performs tensile, tear, adhesive strength, and peel tests, equipped with a large deformation extensometer for precise measurement of specimen deformation.
Widely used in quality control across multiple industries including:
GB/T16491-1996 Electronic Universal Testing Machine
| Model | ZL-8001 |
|---|---|
| Max load | 5KN,10KN, 20KN |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Power supply | 220V, 50HZ |
| Machine weight | Approximately 250 Kg |

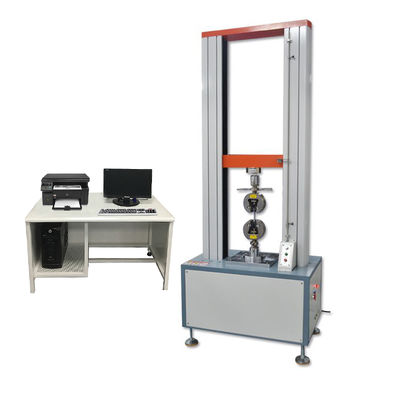

The ZL-8001A Computer Servo Type Universal Testing Machine combines electronic technology with mechanical transmission for accurate load speed and force measurement. It features high accuracy and sensitivity for load, displacement measurement and control, capable of constant-velocity loading and displacement testing. Simple to operate, it's ideal for quality control in production lines, primarily for testing non-metallic and metallic materials with loads less than 2 tons.
Features photoelectric encoder for displacement measurement, embedded single-chip microcomputer controller with multifunction software combining measurement, control, calculation and storage. Automatically calculates stress, rate of elongation, tensile strength, elastic modulus, and statistical results. Records maximum points, breaking points, and designated values. Computer displays dynamic testing curves and processes data for post-test analysis.
