تفاصيل المنتج:
شروط الدفع والشحن:
|
| حمولة كحد أقصى: | 5 كيلو نيوتن، 1 طن، 2 طن | قياس الدقة: | عرض القيمة ± 1٪ / عرض القيمة ± 0.5٪ |
|---|---|---|---|
| عرض الاختبار الفعال: | 390mm | شد شد فعال: | 800 مم، 1000 مم، 1200 مم |
| مدى سرعة الاختبار: | 0.001 ~ 200 مم / دقيقة؛ 500 مم/دقيقة | دقة قياس الإزاحة: | التسامح: ± 0.5٪ / التسامح: ± 0.2٪ |
| نظام قياس التشوه: | الحد الأدنى: 10 مم، المدى الأقصى: 800 مم | دقة التشوه المقاس: | التسامح: ±0.5% |
| حماية الحمل الزائد: | الزائد 10٪ حماية تلقائية | حجم الآلة: | 80x55x220 سم |
| مزود الطاقة: | 220 فولت، 50 هرتز، 0.4 كيلو واط | وزن الآلة: | 250 كجم |
| قرار اختبار: | أقصى حمولة 1/200000 | مستشعر الحمل: | التكوين الأساسي: جهاز استشعار واحد |
| منصة الاختبار تتحرك: | سريع/بطيء سرعتين | ||
| إبراز: | 2 Years Warranty Universal Testing Machine,390mm Testing Width Tensile Strength Testing Machine,800mm-1200mm Tensile Stroke Material Testing Machine,390mm Testing Width Tensile Strength Testing Machine,800mm-1200mm Tensile Stroke Material Testing Machine |
||

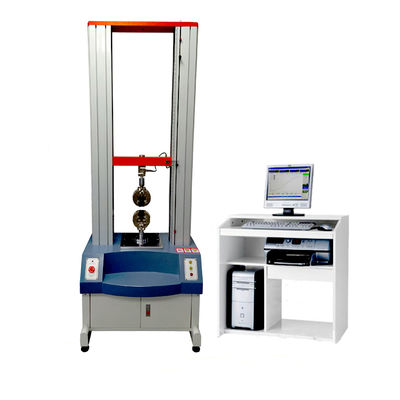

This advanced material testing machine combines electronic technology with mechanical transmission, offering precise load speed control and accurate force measurement. It features high sensitivity for load and displacement measurement, capable of constant-velocity loading and displacement testing. Ideal for quality control in production lines, this machine is designed for testing non-metallic and metallic materials with loads less than 1 ton.
Designed for testing flexible materials with large deformation, including rubber, plastics, and leather. Capable of performing tensile, tear, adhesive strength, and peel tests. Equipped with specialized extensometers for measuring large material deformations.
Widely used across multiple industries including quality control, rubber & plastics, metallurgy, manufacturing, electronics, automotive, textiles, packaging, food, medical equipment, research institutions, and technical supervision departments.
| Parameter | Specification |
|---|---|
| Max Load | 5KN, 1ton, 2 ton |
| Accuracy Grade | 1% / 0.5% |
| Effective Measuring Range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range | 0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Effective Testing Width | 390mm (customizable) |
| Tensile Stroke | 800mm, 1000mm, 1200mm (customizable) |
| Power Supply | 220V, 50HZ, 0.4kw |
| Machine Dimensions | 80×55×220cm (L×W×H) |
| Weight | 250kg |
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Yes, we offer both standard and customized machines tailored to your specific needs.
We provide a 2-year warranty including technical support and parts replacement when necessary.
Zhongli Instrument Technology Co., Ltd, headquartered in Dongguan, Guangdong, China, has been specializing in manufacturing lab testing equipment since 2007. Our products are exported to over 80 countries worldwide, with particular popularity in European and American markets.
