Rubber Tensile Strength and Elongation Test Machine
Equipment Summary

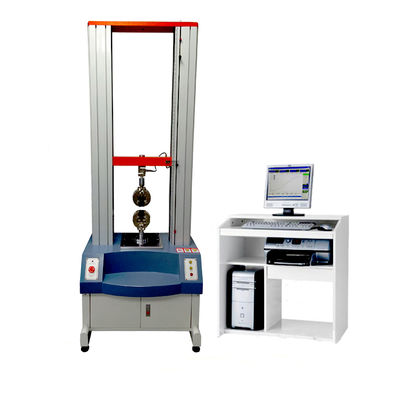

The Rubber Tensile Strength and Elongation Test Machine is a mechanical-electrical integration system composed of a force-measuring sensor, transmitter, microprocessor, load drive mechanism, computer, and color inkjet printer. Featuring a high-precision electronic motor with five-speed settings, this floor-standing model incorporates modern industrial design and ergonomic principles.
Capable of testing various materials including rubber, plastics, leather, metal, nylon wire, fabric, paper, and more for applications in aerospace, packaging, construction, petrochemical, electrical, and vehicle industries. Tests include stretch, compression, bending, shear, embedded relay, peeling, tearing, crack resistance, and other mechanical properties.
Compliance Standards
- GB/T4689.20-1996 - Measuring fastness of leather's adhesion
- QB/T2710-2005 - Measuring leather's expansion and rate of elongation
- QB/T2711-2005 - Measuring tear force of leather
- QB/T2712-2005 - Measuring leather's strength and stretch of spherical crack test
Standard Accessories
- One-year warranty book with operating instructions
- One set of fixtures
- Tensile machine testing software
- Brand computer with color printer
Testing Capabilities
| Measurement Type |
Testing Parameter |
| Tensile stress |
Tensile strength |
| Rate of elongation at break |
Fixed stress |
| Rate of stress at break |
Tear strength |
| Value of force at any point |
Rate of elongation at any point |
| Stress strength |
Pull-out strength |
| Force of adhesion and value of peak |
Technical Specifications
| Parameter |
Specification |
| Model |
Rubber tensile strength and elongation test machine |
| Load cell |
5KN or 1ton and 2 ton option |
| Resolution of force |
1/200000 |
| Accuracy of force |
≤0.5% |
| Power magnification |
7 automatic switching |
| Displacement resolution |
1/1000 |
| Accuracy of displacement |
≤0.5% |
| Resolution of extensometer |
1/1000 |
| Accuracy of extensometer |
≤0.5% |
| Range of speed |
0.01-500mm/min or 1000mm/min |
| Effective Tensile stroke |
800mm;1000mm;1200mm |
| Testing width |
380mm |
| Power supply |
220V |
| Power |
about 2KW |
| Machine size |
about 80*55*220cm(l* w* h) |
| Machine weight |
About 250 kg |
| Units |
Kg, N, LB, TON, can be exchanged |
Software Operation Interface
Packaging & Shipping
Frequently Asked Questions
How to choose the most suitable Mechanical Equipment?
Our professional team will provide recommendations based on your specific testing requirements and specifications.
What's the delivery term?
Typically 15-20 working days after deposit receipt. Expedited options available for urgent needs.
Do you accept customization service?
Yes, we offer both standard and customized machines tailored to your specific requirements.
Can we visit your factory before order?
Yes, we welcome factory visits and can assist with travel arrangements.
Do you have customers in our country?
Our machines have been sold to over 80 countries worldwide, including USA, Canada, European nations, and many others.
How about your warranty?
Standard two-year warranty including technical support and parts replacement as needed.
How is the machine packed for shipping?
Standard export wooden crate packaging ensures safe transportation by sea or air.
What is the order process?
Inquiry → quotation → communication → order confirmation → deposit payment → production → testing → balance payment → packing → delivery.
How to install and use the product?
Includes English operating instructions and video guide for installation and operation.
