| حمولة كحد أقصى: | 5 كيلو نيوتن، 1 طن، 2 طن | نطاق القياس الفعال: | 0.2٪ ~ 100٪ (1 درجة) /0.4٪ ~ 100٪ (0.5 درجة) |
|---|---|---|---|
| قياس الدقة: | عرض القيمة ± 1٪ / عرض القيمة ± 0.5٪ | قرار اختبار: | أقصى حمولة 1/200000 |
| عرض الاختبار الفعال: | 390mm | شد شد فعال: | 800 مم ؛ 1000 مم ؛ 1200 مم |
| مدى سرعة الاختبار: | 0.001 ~ 200 مم / دقيقة؛ 500 مم/دقيقة | دقة قياس الإزاحة: | التسامح: ± 0.5٪ / التسامح: ± 0.2٪ |
| نظام قياس التشوه: | الحد الأدنى: 10 مم، المدى الأقصى: 800 مم | دقة التشوه المقاس: | التسامح: ±0.5% |
| حماية الزائد: | الزائد 10٪ حماية تلقائية | حجم الآلة: | 80x55x220 سم |
| مزود الطاقة: | 220 فولت ، 50 هرتز | قوة: | 0.4kw |
| وزن الآلة: | 250 كجم | ||
| إبراز: | 20KN universal testing machine for material testing,mechanical tensile tester with competitive price,universal testing machine with warranty,mechanical tensile tester with competitive price,universal testing machine with warranty |
||

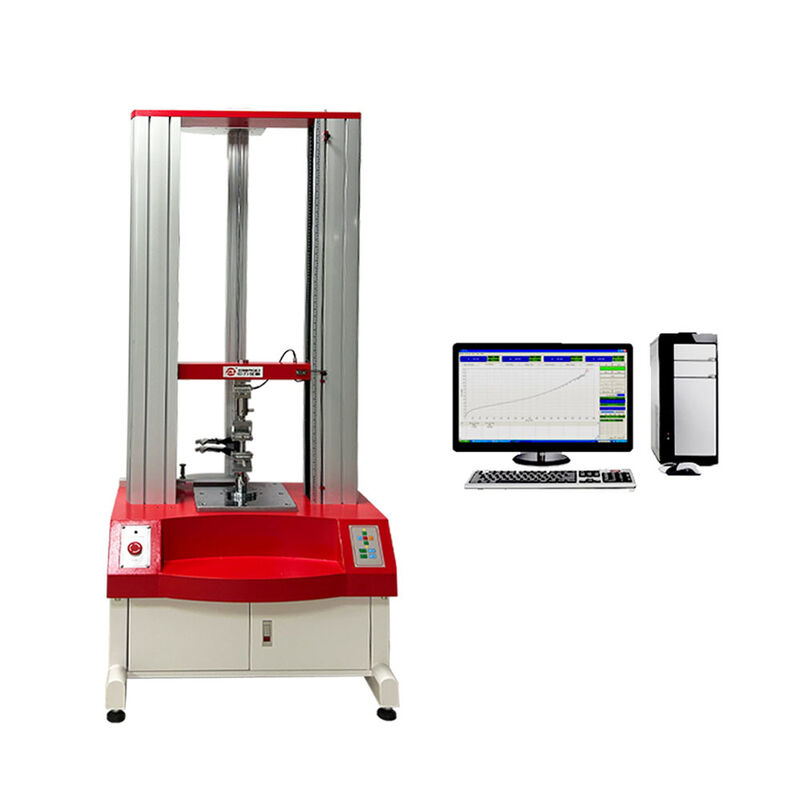

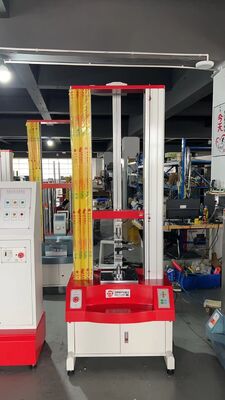

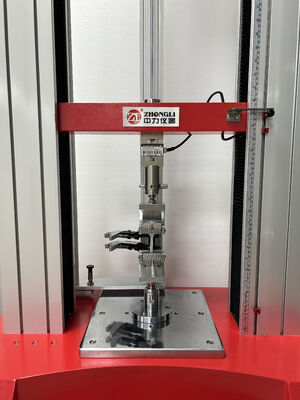

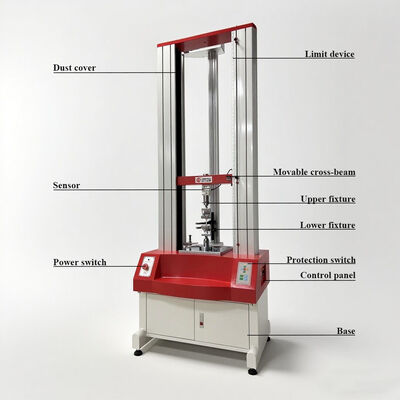

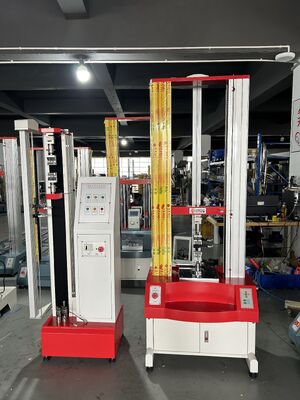

The High Temperature Universal Tensile Strength Testing Machine combines electronic technology with mechanical transmission for precise material testing. It features accurate load speed, force measurement range, and high sensitivity for load and displacement measurement and control.
Ideal for testing flexible materials with large deformation including rubber, plastics, leather, and more. Performs tensile, tear, adhesive strength, and peel tests.
| Parameter | Specification |
|---|---|
| Max Load | 5KN, 1ton, 2 ton |
| Accuracy Grade | 1% / 0.5% |
| Effective Measuring Range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Testing Speed Range | 0.001~200mm/min; 500mm/min (1000mm/min optional) |
| Effective Testing Width | 390mm (customizable) |
| Power Supply | 220V, 50HZ, 0.4KW |
| Machine Weight | 250kg |
Rubber & Plastics, Metallurgy, Manufacturing, Electronics, Automotive, Textiles, Packaging, Food, Medical Equipment, Research Laboratories, and more.
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Yes, we offer both standard and customized machines tailored to your specific requirements.
We offer a two-year warranty with technical support and parts replacement as needed.
