| قوة الاختبار: | 600 كيلو نيوتن/1000 كيلو نيوتن | مساحة اختبار فعالة: | 1200 مم × 1200 مم / 1400 مم × 1400 مم |
|---|---|---|---|
| ارتفاع الجدول: | 300 ملم | دقة قيمة القوة: | ± ± 1% |
| نطاق سرعة التحميل: | 0.1 ~ 25 كيلو نيوتن / ثانية | تعطل المكبس: | 300 ملم |
| نطاق قياس التشوه: | 0-20 ملم | قرار التشوه: | 0.01mm |
| دقة إشارة التحميل: | 0.1 كيلو نيوتن | طريقة التحميل: | الكهربائية الهيدروليكية |
| وضع التحكم: | مضاعفات يدوية / كهروهيدروليكية | جارٍ تحميل الوسائط: | زيت هيدروليكي مضاد للتآكل 46#/68# |
| قوة المحرك: | 0.75kw | الجهد االكهربى: | 380 فولت/220 فولت |
| وزن المضيف: | 3000 كجم | ||
| إبراز: | 60T servo hydraulic compression tester,manhole cover strength testing machine,computer control universal testing machine,manhole cover strength testing machine,computer control universal testing machine |
||

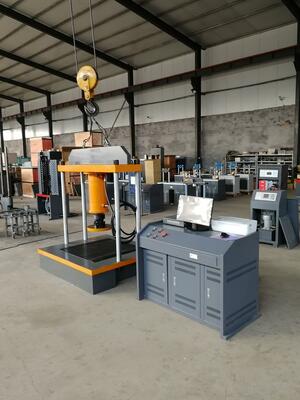

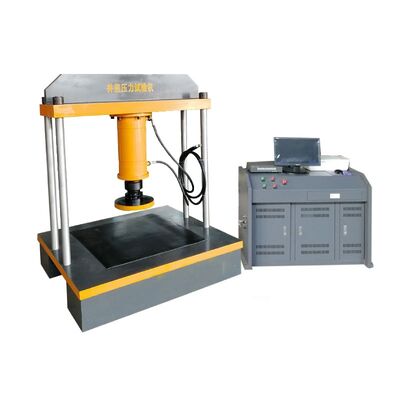

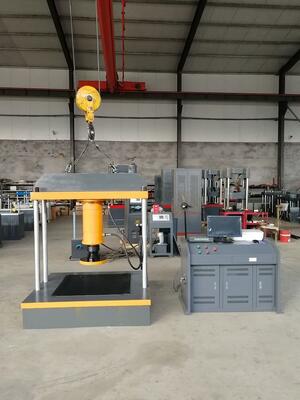

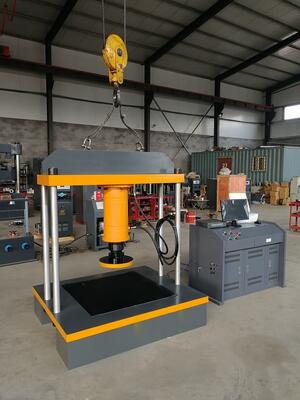

This computer-controlled servo hydraulic compression test machine is designed for evaluating the bearing capacity and deformation of manhole covers according to industry standards including CJ/T3012-1993, CJ/T121-2000, JC889-2001, and GB/T 23857-2009.
| Parameter | Value |
|---|---|
| Test Force | 600KN/1000KN |
| Effective Test Space | 1200mm×1200mm/1400mm×1400mm (customizable) |
| Table Height | 300mm |
| Force Value Accuracy | ≤ ±1% (better than level 1) |
| Loading Speed Range | 0.1~25KN/s (manual stepless speed regulation) |
| Piston Stroke | 300mm |
| Deformation Measurement Range | 0-20mm |
| Deformation Resolution | 0.01mm |
| Load Indication Accuracy | 0.1KN |
| Loading Method | Electro-hydraulic |
| Control Mode | Manual/Electro-hydraulic servo speed |
| Loading Media | 46#/68# anti-wear hydraulic oil |
| Motor Power | 0.75KW |
| Voltage | 380V/220V |
| Host Dimensions | 1200mm×1400mm×1500mm (L×W×H) |
| Host Weight | 3000Kg |
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Standard delivery time is 15-20 working days after deposit receipt. Rush orders can be accommodated with special arrangements.
Yes, we offer both standard and customized machines tailored to your specific requirements.
We welcome factory visits and can assist with hotel arrangements and airport transfers.
Standard warranty is two years, including technical support and parts replacement. On-site engineer support is available when necessary.
