تفاصيل المنتج:
شروط الدفع والشحن:
|
| حمولة كحد أقصى: | 5KN، 10KN، 20KN، يمكن تخصيصها | نطاق القياس الفعال: | 0.2٪ ~ 100٪ (1 درجة) /0.4٪ ~ 100٪ (0.5 درجة) |
|---|---|---|---|
| قياس الدقة: | عرض القيمة ± 1٪ / عرض القيمة ± 0.5٪ | قرار اختبار: | أقصى حمولة 1/200000 |
| عرض الاختبار الفعال: | 390mm | شد شد فعال: | 800 مم ؛ 1000 مم ؛ 1200 مم |
| مدى سرعة الاختبار: | 0.001 ~ 200 مم / دقيقة ؛ 500 مم / دقيقة (1000 مم / دقيقة خيار) | دقة قياس الإزاحة: | التسامح: ± 0.5٪ / التسامح: ± 0.2٪ |
| نظام قياس التشوه: | الحد الأدنى للامتداد: 10 مم، الحد الأقصى لنطاق التشوه: 800 مم | دقة التشوه المقاس: | التسامح: ± 0.5% |
| حماية الحمل الزائد: | الزائد 10٪ حماية تلقائية | حجم الآلة: | 80 × 55 × 220 سم (الطول * العرض * الارتفاع) |
| مزود الطاقة: | 220 فولت ، 50 هرتز | قوة: | 0.4kw |
| وزن الآلة: | 250 كجم | ||
| إبراز: | 800mm Tensile Stroke Universal Testing Machine,390mm Testing Width Universal Testing Machine,Two-Year Warranty Foam IFD Hardness Tester,390mm Testing Width Universal Testing Machine,Two-Year Warranty Foam IFD Hardness Tester |
||

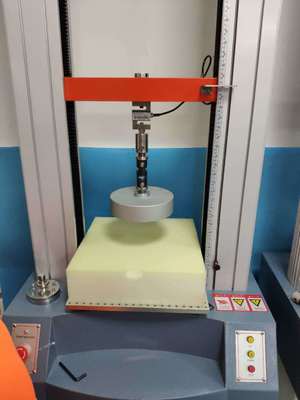

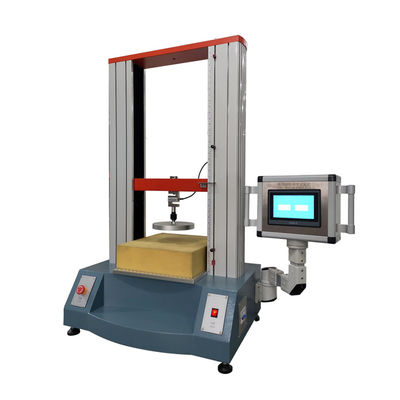

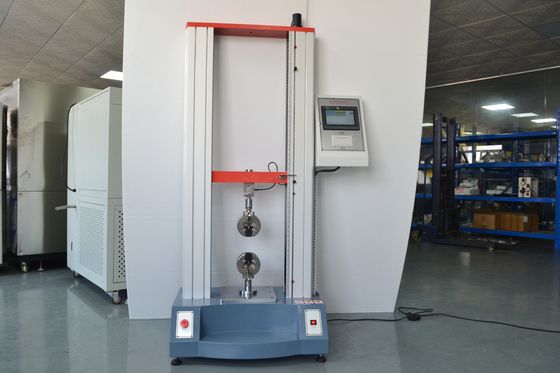

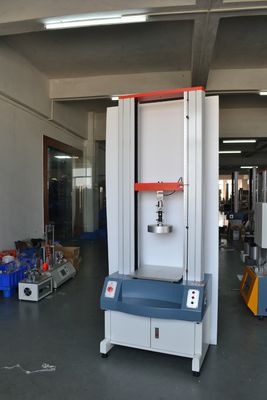

| Model | ZL-8001 Computer Servo Universal Tensile Strength Testing Machine |
|---|---|
| Max load | 5KN,10KN, 20KN, Can be customized |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000, regardless of inside and outside, constant the resolution |
| Load sensor | Basic configuration: sensor(max load): one. Extended configuration: can add more sensors |
| Effective testing width | 390mm (can be widened according to customer's requirement) |
| Effective Tensile stroke | 800mm;1000mm;1200mm (can be increased the height according to customer's requirement) |
| Range of testing speed | 0.001~200mm/min; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system | Min span: 10mm, Max range of deformation: 800mm. Extended deformation: Min span: 25mm,50mm,100mm, range of deformation: 5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance: ±0.5% (according to requirement of customer to choose the larger or small deformation) |
| Safety | Electronic-limit protection |
| Testing platform moving device | Fast/slow two speeds to control, can jog |
| Return back | Manual or automatic operation. After the test, the moving iron returns to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%, automatic protection |

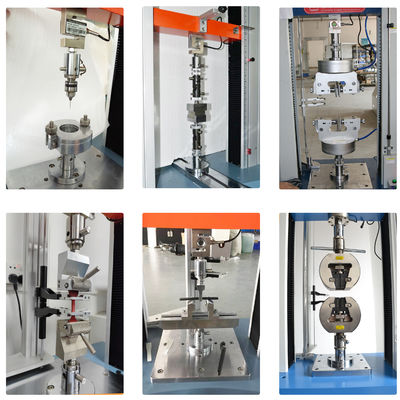

| Fixture | A set of tensile fixture |
| Machine size | 80x55x220cm (length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V, 50HZ |
| Power | 0.4KW (depending on different demand of force, using different motor) |
| Machine weight | (about) 250 Kg |
| Units | Kg, N, LB, TON, can be exchanged |
