تفاصيل المنتج:
شروط الدفع والشحن:
|
| حمولة كحد أقصى: | 100-5000 كجم | قرار اختبار: | أقصى حمولة 1/200000 |
|---|---|---|---|
| شد شد فعال: | 800 ملم | عرض الاختبار الفعال: | 400 ملم |
| سرعة الاختبار: | 0.001 إلى 500 مم/دقيقة | حجم الآلة: | 1200*530*1800 ملم |
| الفضاء الداخلي: | 200*300*500 ملم | وزن: | 300 كجم |
| الجهد االكهربى: | 220 V ، 380 V | فئة الحماية: | IP56 |
| قياس الدقة: | 1 درجة / 0.5 درجة | مستشعر الحمل: | ±1%/±0.5% |
| دقة النزوح: | ±0.5%/±0.2% | مزود الطاقة: | 220 فولت ، 50 هرتز |
| قوة: | 0.4kw | ||
| إبراز: | Desktop Microcomputer Tensile Tester with ASTM D3574,Universal Testing Machine ISO 8067 compliant,Competitive Price Universal Testing Machine,Universal Testing Machine ISO 8067 compliant,Competitive Price Universal Testing Machine |
||

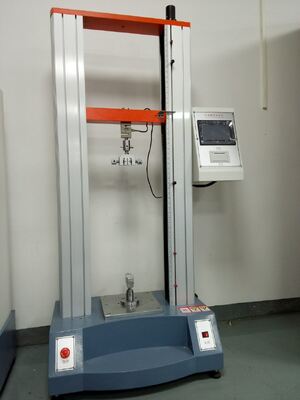

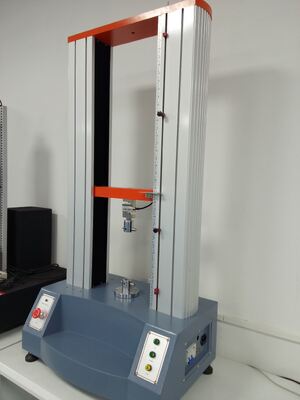

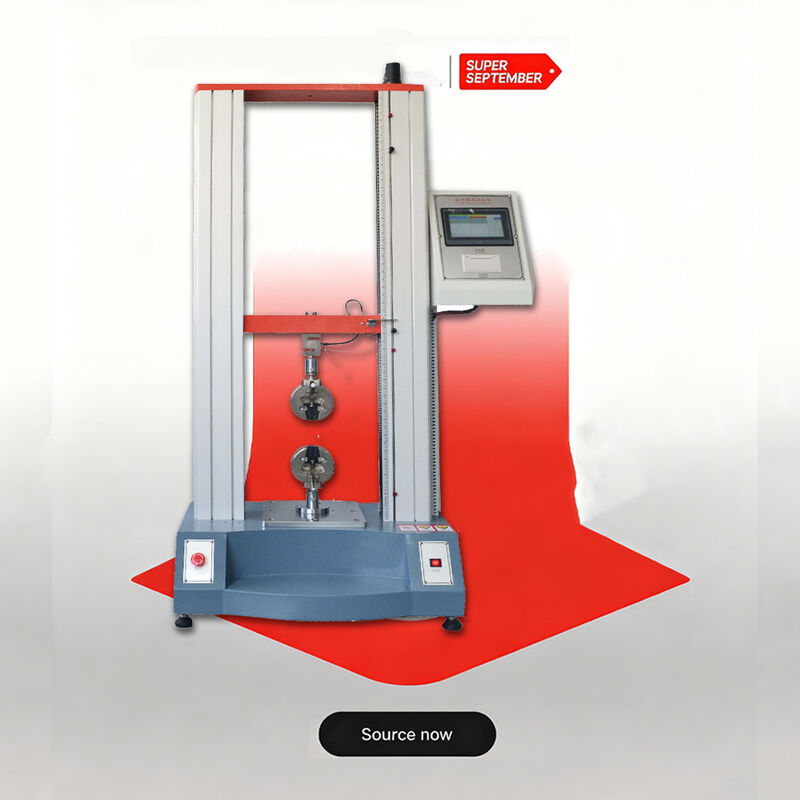

This universal testing machine is designed for comprehensive material testing including tension, compression, bending, shear, peel (90° and 180°), tear, and extension testing (with extensometer). Suitable for various materials including rubber, plastics, synthetic leather, tape, adhesive, plastic film, composites, electronics, and metals.
Widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, automotive parts, textiles, leather, footwear, rubber and plastic products industries. Essential equipment for research laboratories, quality inspection, and technical supervision departments.
| Parameter | Specification |
|---|---|
| Model | ZL-8002 |
| Max Load | 500N, 1KN, 2KN, 5KN |
| Measuring Accuracy | 1 grade / 0.5 grade |
| Tester Resolution | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Effective Tensile Stroke | 800mm; 1000mm; 1200mm (customizable) |
| Testing Speed Range | 0.001~500mm/min |
| Power System | Panasonic AC Servo Motor + Driver |
| Power Supply | 220V, 50HZ |
| Machine Dimensions | 65×36×210cm (L×W×H) |
| Weight | Approx. 160 KG |
Founded in 2007 and headquartered in Dongguan, Guangdong, China, we specialize in manufacturing laboratory testing equipment. Our products are exported to over 110 countries worldwide, with particular success in European and American markets.
Our professional team will provide recommendations based on your specific testing requirements and specifications.
Standard delivery time is 15-20 working days after deposit. Rush orders can be accommodated.
Yes, we provide both standard and customized machines tailored to your specific needs.
We offer a 2-year warranty including technical support and parts replacement.
